Micro Line

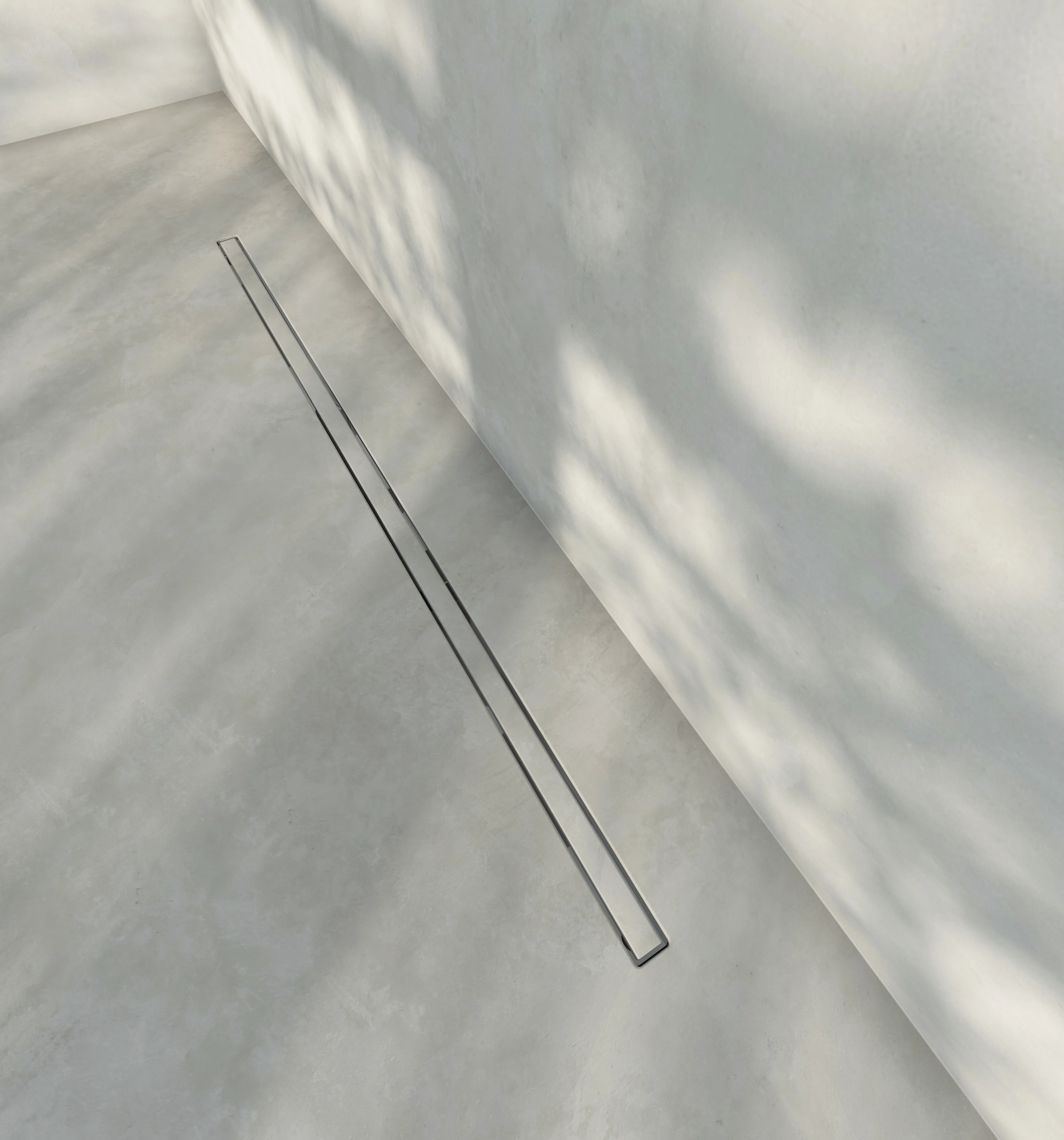

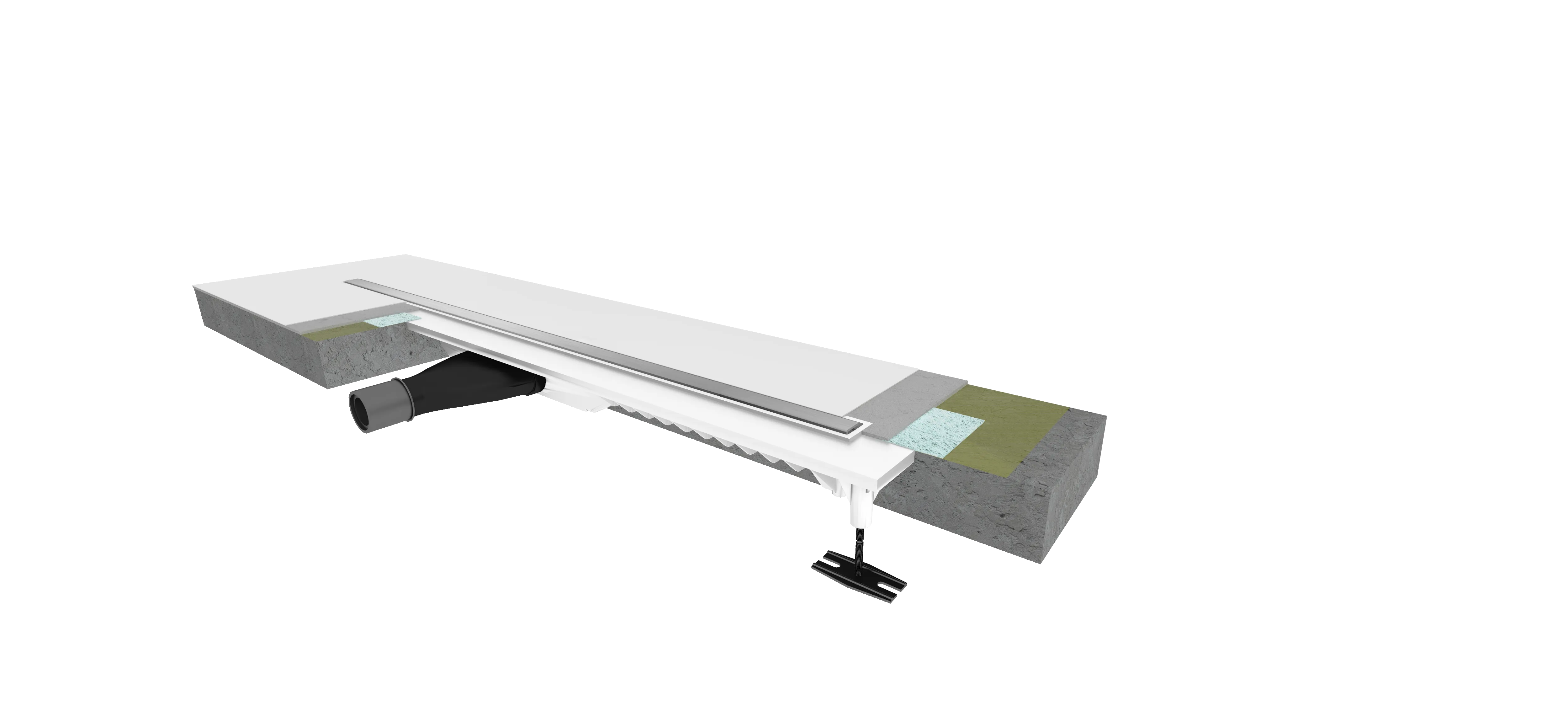

Mydrain Micro is the solution for walk-in showers finished with cast floors, epoxy or microcement. The Micro shower drain was developed in close cooperation with specialists in these flooring techniques. After finishing, only a minimal grid opening of 26 mm remains visible. Super sleek and completely seamless.
With the 20 mm wide insert grating, Mydrain Micro is by far the narrowest shower drain for cast floors. Yet the siphon always remains easily removable and easy to clean. The insert grating can be coloured with the same material as the final layer of your floor finish.

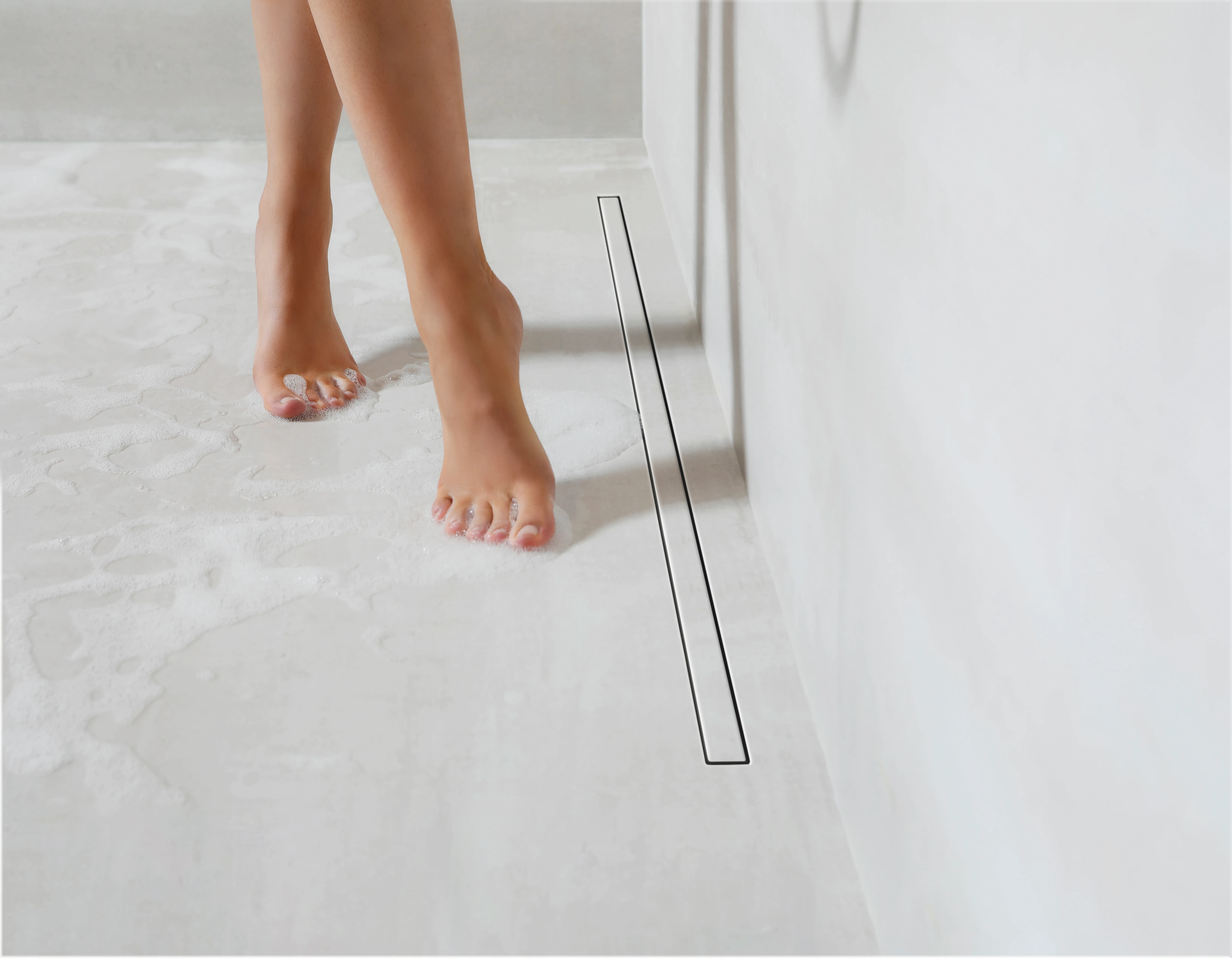

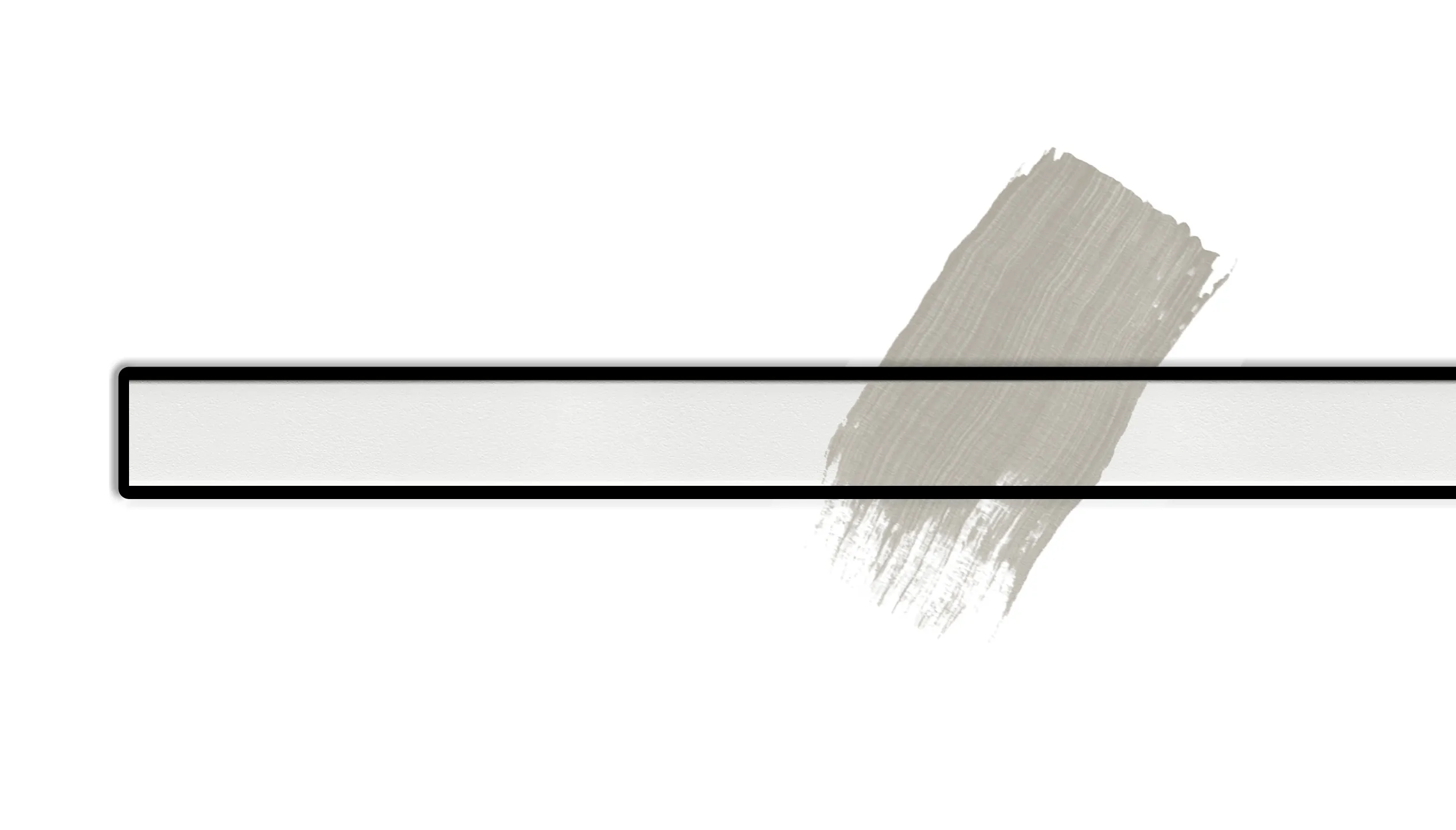

Are you opting for microcement, epoxy or a PU floor? Then you can colour the insert grid of the Micro White in the colour of your floor finish. This way, your shower drain becomes completely one with the rest of the shower floor.
Technical specifications
| Installation height | 58 + 3 mm |
| Flow rate | 31 L/min |
| Drain diameter | 40 mm |
| Water trap height | 30 mm |
| Available lengths | 70, 80 cm |
| Grid opening | 26 mm |
| Insert grating | 20 mm wide |
